LED single Surface Phototherapy, PT-4101
Product Specifications
Model Name/Number
PT4101
Brand
Zeal
Lamp
LED
Usage/Application
Hospital
Voltage
220-240 VAC
Frequency
50 Hz
Power
75 W
Additional information
Product Description

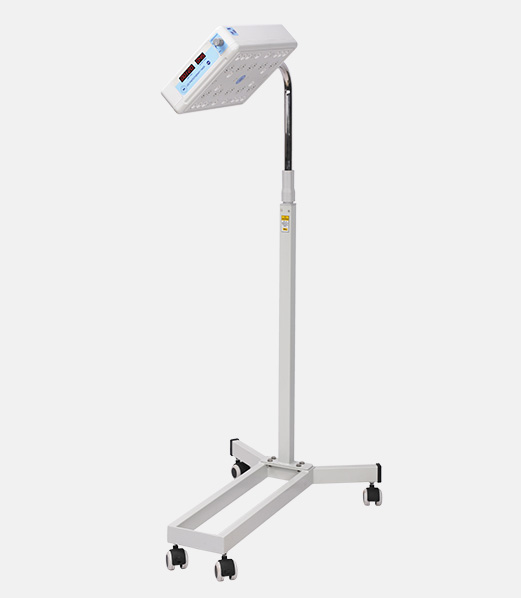

Body Structure Heavy duty mobile stand phototherapy unit mounted on 4 castor wheel ( With brake 2 Nos)
Light SourceTherapeutic high wattage blue LEDs, 16 nos having wavelength of 455 nm to 465 nm and for observation high wattage white LEDs 04 nos. LED lamps rated to last up to 50000 hours at high power
Height Adustment Facility Over surface phototherapy unit have light source height adjustment range between 0.95 m to 1.5 m from the floor.
Digital TimerDual Digital cumalative timer in hours for lamp timer and patient timer.
Light SourceTherapeutic high wattage blue LEDs, 16 nos having wavelength of 455 nm to 465 nm and for observation high wattage white LEDs 04 nos. LED lamps rated to last up to 50000 hours at high power
Height Adustment Facility Over surface phototherapy unit have light source height adjustment range between 0.95 m to 1.5 m from the floor.
Dimming facility
Blue LEDs of the phototherapy unit have a light dimming facility
Source Swiveling
Over surface phototherapy unit have source swiveling facility, continuos upto 90 on both side
Effective Surface Area
Effective surface area of the phototherapy unit is 40 cm x 30 cm, having a uniformity ratio of 40% at a distance of 35 cm to 45 cm from light source. Hight irradiance mesasures upto 67.5 micro watt/cm2/nm.Digital TimerDual Digital cumalative timer in hours for lamp timer and patient timer.
